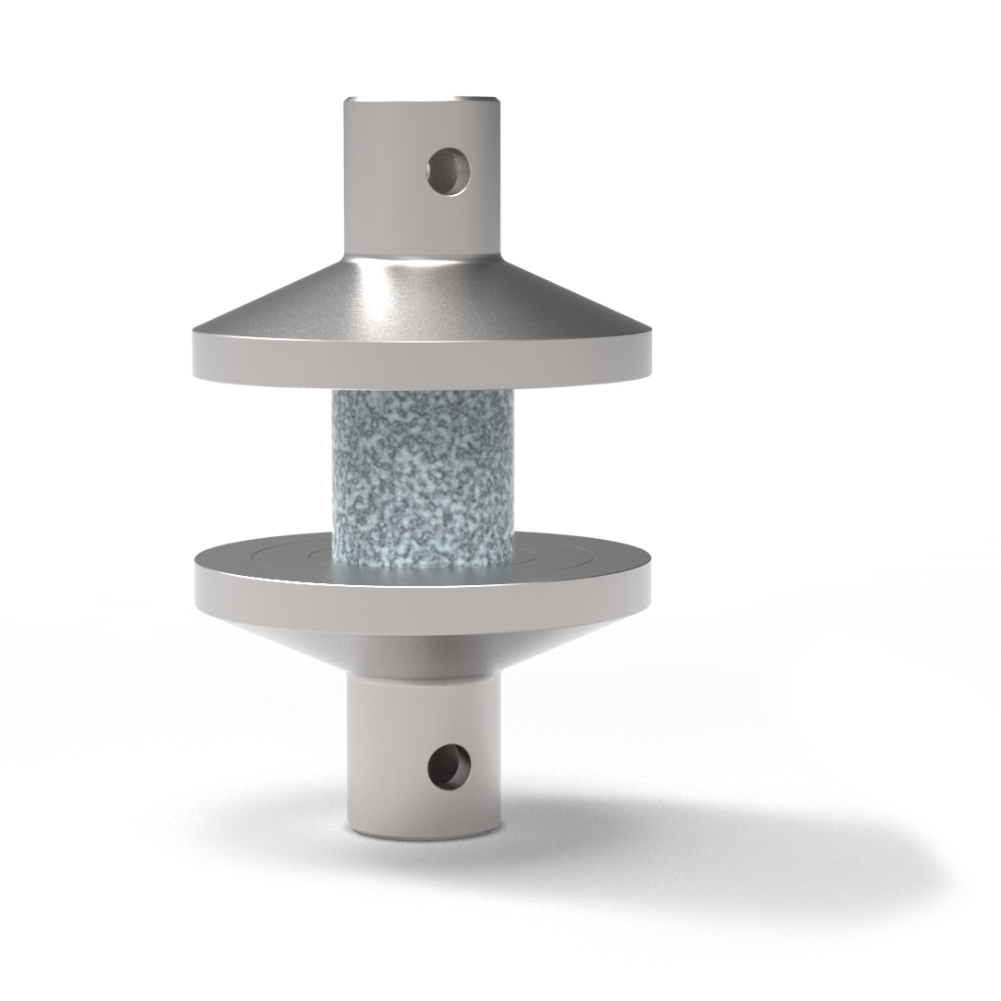

Compression Platens
FI.CP
The perfect accessory for compression testing of material samples.
Description
Multi-purpose, easy to use compression platens for static material testing. The set contains two compression platens made of hardened steel as well as the necessary assembly parts. The pressure area are available in different sizes. In addition, various adapter options are available for mounting on a test system.
Applications
Compression test of metals, plastic, composites, wood, general materials.
Specifications
Model | FI.CP.005 | FI.CP.010 | FI.CP.025 | FI.CP.050 | ||
Force Capacity | 5 kN | 10 kN | 25 kN | 50 kN | ||
Type | Compression Platens | |||||
Specimen Thickness | not limited | |||||
Operation | Compressive Load | |||||
Temperature Rating | -150...+280 °C | |||||
Weight | 4.5 kg | 5.2 kg | 6.5 kg | 8.4 kg | ||

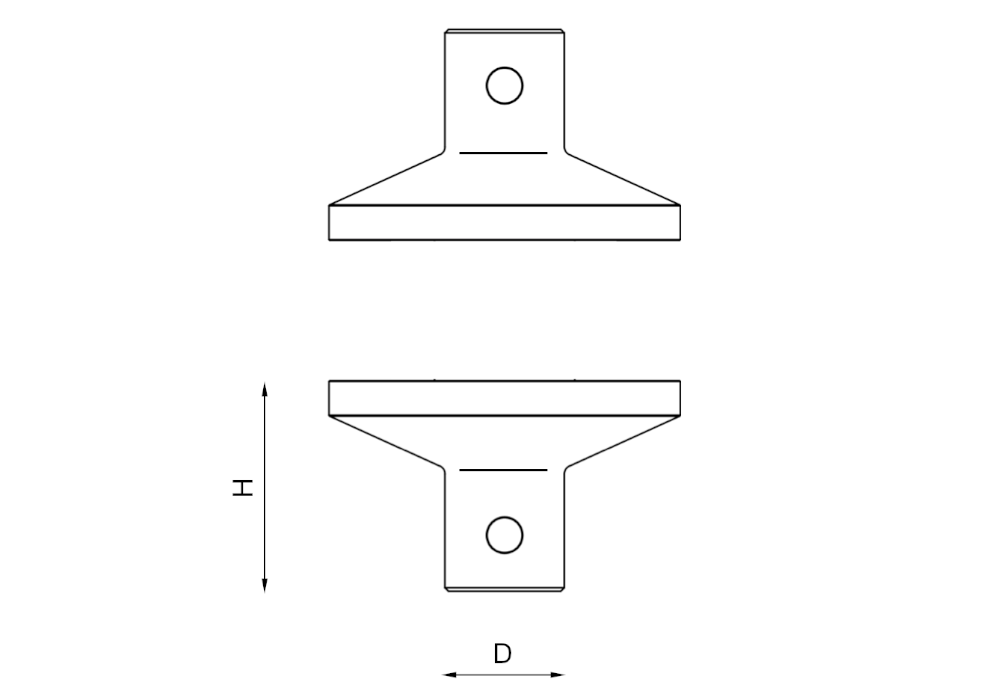

Dimensions
| H D | 100 45 | 100 45 | 120 50 | 140 60 | |
Adapter
Adapter Male
