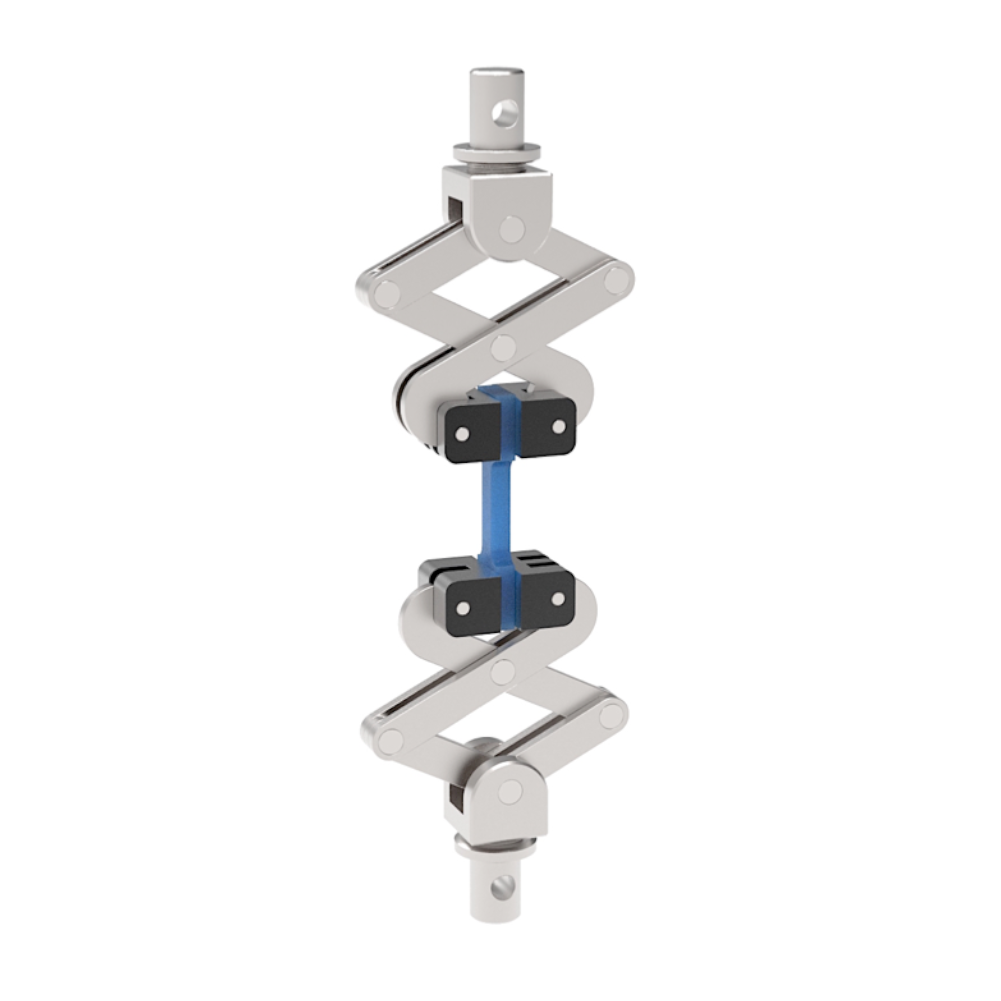

Scissor Grip
GR.VI.ME
The perfect scissor grip for tensile testing of metals, plastic, composites and wood.
Description
Multi-purpose, easy to use manual scissor grips. The set contains two support arms made of hardened steel as well as the necessary assembly parts. The scissors are available in different sizes. In addition, various adapter options are available for mounting on a test system.
Applications
Tensile testing of metals, plastic, composites and wood.
Specifications
Model | GR.VI.ME.005 | GR.VI.ME.010 | GR.VI.ME.025 | GR.VI.ME.050 | ||
Force Capacity | 5 kN | 10 kN | 25 kN | 50 kN | ||
Type | Scissor Action | |||||
Specimen Thickness | 0...10 mm | 0...12 mm | 0...14 mm | 0...16 mm | ||
Operation | scissor, manually | |||||
Temperature Rating | -150...+280 °C | |||||
Weight | 4.5 kg | 5.2 kg | 6.5 kg | 8.4 kg | ||

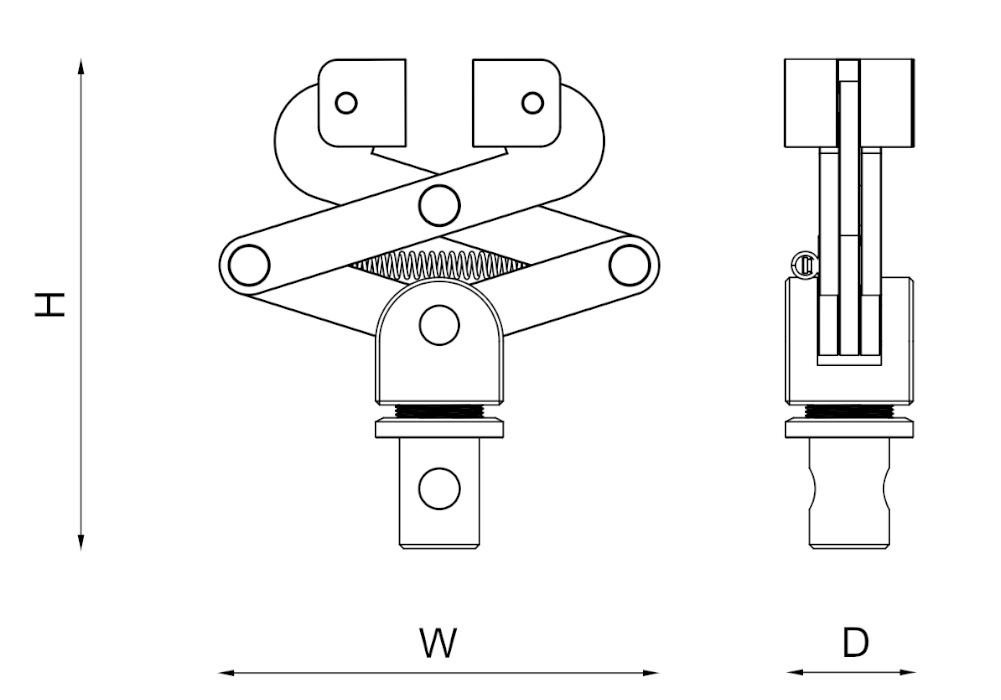

Dimensions
| H W D | 80 100 25 | 100 100 28 | 120 100 32 | 140 100 36 | |
Adapter
Adapter Male
Adapter Female
